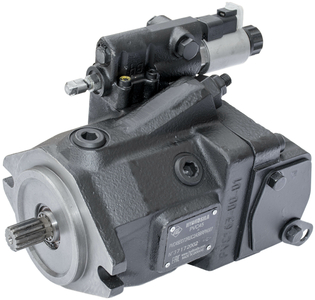

Variable displacement axial-piston pumps "PVC" series
Variable displacement axial-piston pumps for hydraulic systems with open circuit and rated pressure up to 280 bar. Displacement 18…71 ccm. The compact and reliable design of the pumps with a wide range of controls system and configurations makes them ideal for a wide range of mobile machines.
- Medium pressure pump for hydraulic systems with open circuit
- Displacement 18…71 cm
- Rated pressure 280 bar
- Maximum pressure 350 bar
- A wide range of control types
- Possibility of tandem according to SAE
- Low noise level
Variable displacement pump PVC series are designed for hydraulic systems of mobile equipment. Low power consumption, a wide range of controls and configurations make them ideal for a wide range of mobile machines.
Application:
- Telescopic wheel loaders
- Backhoe loaders
- Bucket loaders
- Bulldozers
- Articulating boom lifts
- Combines
- Cranes
Compact and reliable design, low power consumption and a wide range of controls and configurations make them the ideal solution for a wide range of mobile machines. They are used in construction, forestry and agricultural machinery, municipal and loading equipment, equipment of mining and oil-and-gas industries.
Characteristics:
- Swashplate design.
- High volumetric efficiency.
- Smooth operation over the entire speed range.
- Bimetal contro; valve has a high wear-resistance.
- The bushing design of the oscillating assembly cylinder block increases antifriction properties in sliding pairs, increasing the overall efficiency of the pump.
- Tapered roller bearings allow the pump shaft to withstand high radial and axial loads.
- Mechanical mounting of the part-turn bearings ensures reliable swash plate turning mechanism.
- Mounting flanges according to SAE.
- Possibility of tandem according to SAE.
